Recovery Equipment

The WARN ZEON® has proven itself in the field, and among off roaders. Now you can get the 12,000 pound capacity ZEON winch with Spydura® Pro synthetic rope. The new ZEON 12-S winch trims weight but keeps plenty of muscle for the big jobs, and the toughest rescues. And the light, easy-to-handle synthetic rope makes any winching situation a bit easier. It's the perfect choice for heavily loaded off road vehicles.

• Legendary WARN reliability and performance; 12,000 lb. (5443 kg) capacity - perfect for the bigger vehicles.
• Unique exterior styling and symmetrical design give this winch a look that is advanced, capable, and strong.
• New-design planetary gear train and series-wound motor deliver fast, quiet, and reliable pulling power.
• Flat black powder-coated finish with stainless steel fasteners and clutch lever looks great and inhibits corrosion.
• Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks.
• Aluminum winch drum reduces rope wear, is light weight, and has an integrated rope anchor for easy rope installation.
• Robust aluminum structure is durable and helps dissipate heat.
• Extreme waterproofing meets rigorous IP68 standards - the highest rating in the WARN Truck/SUV winch lineup.
• Contactor control for extreme reliability and weather resistance.
• Automatic mechanical cone brake holds the full rated load and offers excellent control while winching.
• Ultra-durable metal-reinforced rubberized corded remote with 12' lead.
• Includes 80' of 3/8" Spydura Pro synthetic rope and aluminum hawse failead with powder-coat finish.
• Proprietary and strongest-in-class Spydura Pro synthetic rope is found on many military vehicles. This rope features a urathane-coated 12-strand braid, heat treated under tension. A 20 ft. Nomex™ heat sleeve protects the rope on the layer nearest the drum.

The fast, powerful 9.5xp Extreme Performance winch is designed for the serious off-roader who demands a winch that will perform under the most extreme conditions in the world. With 9,500 lbs. of pulling power and the fastest line speed of any WARN winch under load, the 9.5xp delivers extreme performance that eats up the competition-even in competition

• High-output parallel series wound winch motor is the strongest and most durable in the industry
• Extreme-duty winch sealing. Enables superior water resistance
• Exclusive brake design. Provides superior operator control when winching
• Extended-duty control pack delivers long duty cycle to help you tackle the most demanding pulls
• 3-Stage planetary geartrain. Proven to be the most reliable efficient and durable design
• Remote-mount, next-generation control box allows for various mounting options
• Remote control with 12' (3.7m) lead
• High gloss, chip-resistant powder coat finish. Provides superior corrosion resistance
• 100' of steel winch rope

Champion workhorse for heavy-duty winching. 3-stage planetary gear train combined with a 4.6hp series wound motor produce 12,000 lbs. of pulling power. Design is low profile so it fits where you want it.

• 12,000 lb. (5,440 kg) pulling capacity (single line)
• Large frame winch design is designed to handle heavier winch loads
• Series-wound, high-speed motor provides fast line speed and strong pulls
• Brake provides superior control while winching
• Remote-mount control box allows for various mounting options
• Durable 3-stage planetary geartrain for smooth, reliable, operation
• Remote control with 12' (3.7m) lead
• Chip-resistant powder-coated finish
• 125' of 3/8" (38m of 9.5mm) diameter wire rope

Choose your way to conquer the terrain. The ZEON 10-S is tough enough to tackle anything you will, with a look that is advanced, capable and strong. Muck-busting sealing keeps out everything but the good times. Add a hyper-durable cast-aluminum housing, satin-black finish, and 10,000 lbs. single-line pulling capacity and, well, you've got a workhorse unit you can trust for years to come.

• 10,000 lb. (4536 kg) single-line pulling capacity.
• Includes 100' of 3/8" WARN Spydura synthetic rope, a temperature-resistant sleeve on the first layer, a ballistic nylon sliding sleeve for abrasion resistance, and a matte aluminum hawse fairlead
• Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks. (Relocation kit required and sold separately*)
• Updated planetary gear train and series-wound motor deliver fast, quiet, and reliable pulling power.
• Satin-black powder-coated finish with stainless steel fasteners and clutch lever looks great and inhibits corrosion. Improved winch sealing to keep the elements out.
• Large diameter winch drum reduces rope wear, is light weight, and has an integrated rope anchor for easy rope installation.
• Backed by the WARN Limited Lifetime Warranty

The WARN PowerPlant 12 combines a powerful winch with a high-performance air compressor for the ultimate vehicle-mounted multi tool. The PowerPlant 12 has a pulling capacity of 12,000 lbs. and is equipped with a powerful air compressor that can air up four 35" tires in eight minutes and even run air tools. With additions such as stainless steel fasteners, a pressure switch, a revised contactor, and a hose and accessories, the PowerPlant is better than ever.

FEATURES INCLUDE:

• Series-wound motor with thermal protection shutoff switch.
• Three-stage planetary gear train for smooth, efficient operation.
• Extreme duty winch sealing for superior water resistance.
• Stainless steel fasteners for exceptional corrosion protection.
• Wire rope with roller fairlead (80' of 3/8").
• Mechanical brake for reliable operator control while winching.
• Improved contactor control for great reliability and long duty cycles.
• Pressure switch limits maximum/minimum air pressure in reservoir.
• Intercooler/air reservoir reduces compressed air temperature. Half-gallon air reservoir helps even airflow.
• High-output air compressor delivers 5 CFM @ 90 PSI; maximum air pressure is 100 PSI.
• Air outlet/hose connection works with quick-connect couplers.
• Hand-held control for operation of both winch and compressor. LED provides feedback on motor temperature.
• Accessory kit includes a more durable and flexible 20' (6.1m) air hose; quick-connect couplers; WARN-branded tire pressure gauge and dual air chuck; and sturdy carry bag.
• Corrosion-resistant flat-black finish.

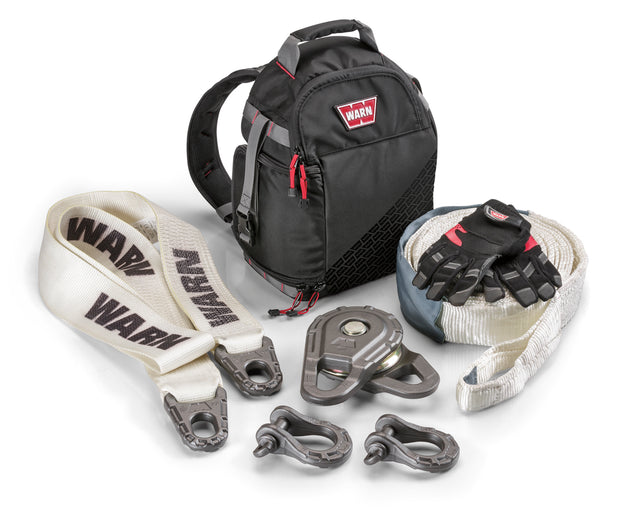

When you hit the trails, you go prepared and carry the right gear for getting the most out of your WARN winch. That's why we offer the WARN Epic Accessory Kit. The kit includes premium WARN Epic accessories that wear durable powder coatings that protect against abrasion and the elements and stand up to the most rigorous recoveries. The components fit neatly inside the modular backpack, which also acts as a winch line damper, and is easy to transport. Available in medium duty (for winches 12,000 lbs and under) and heavy duty (for winches 18,000 lbs. and under).

• Two forged 3/4" Epic Shackles with E-coat/powder cost finish (for 18,000 lb. winches and under)
• Epic Tree Trunk Protector, including forged end loops with E-coat/powder cost finish (2" x 8'; rated to 14,400 lbs.)

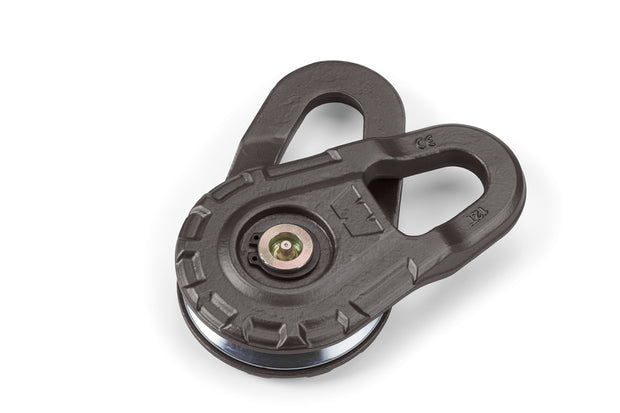

• Epic Snatch Block with E-coat/powder coat finish (for winch capacities of up to 12,000 lbs.)
• Premium Recovery Strap (2" x 30'; rated to 14,400 lbs.)
• Winching Gloves with Kevlar reinforcement and synthetic leather
• Backpack carrying case: Made from ballistic material with modular interior. Doubles as line damper.

All-new WARN winch gloves provide superior fit and protection. These gloves are designed to help protect your hands from the sharp barbs and abrasion that may occur when handling winch rope. Recommended equipment when working with winch rope.

• Durable synthetic leather with Kevlar reinforcement resists abrasion
• Extra reinforcements provide superior knuckle and fingertip protection
• Shock absorbing palm
• Terry cloth sweat wipe
• Neoprene wrist and pull strap

Made from high quality tensile strength grades of malleable castings and with a lifting capacity of 1050kg, the ARB Hi-Lift jack and ARB Hi-Lift jack X-treme have become staple recovery items amongst four wheelers all over the world.

The Hi-Lift jack X-treme incorporates durable gold-zinc coated hardware, a quick release lever and one position set-up for all winching, clamping and spreading requirement

For any off road tourer, it’s a well-known fact that no matter how precisely a trip may be organised, things don’t always go as planned; and when it comes to prepping your rig ready to kick up some dirt and battle the toughest terrains, you can count on the ARB JACK to have your back when tackling the trickiest of recovery missions.

ARB snatch blocks feature side plates that sit snug against the pulley, eliminating the possibility of the winch cable becoming trapped between the pulley and the side plates. The groove on the pulley itself tapers down to the center allowing for a variety of cable sizes (1/4"-1/2") to be used and ensures the cable is seated securely in the pulley, minimizing lateral movement.

Features:

• Works with steel or synthetic winch lines
• Light weight design
• Easy to use
• Doubles the capacity of your winch
• Allows winching from awkward angles
• Engineered tough for serious recovery
• Suits vehicle mounted and portable winches
• Vehicle recovery booklet enclosed

West Coast 4x4 Fanatics now offers a complete pre-assembled boxed kit, the ARB Essentials Recovery Kit includes everything the off-roader needs to get started. Whether it be a simple snatch recovery or a more serious winch recovery, the ARB Essentials Recovery Kit has what you need to get started. ARB Essentials Recovery Kit represents exceptional value and a savings over purchasing each component individually.

KIT CONTENTS

- 1x P/No. ARB502 Recovery Bag Small

- 1x P/No. ARB705LB 17,500lb Snatch Strap

- 1x P/No. ARB730LB 26,500lb x 10’ Tree Trunk Protector

- 2x P/No. ARB2014 10,640lbs, 3/4” Pin, D-Shackle
